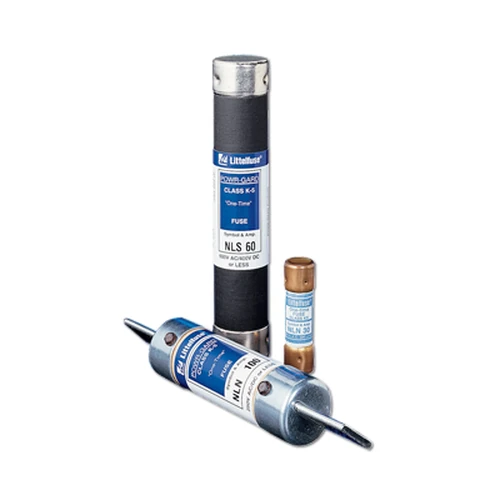

Littelfuse NLS600 600A 600V Class K5 One-Time Fuse

Name: Littelfuse NLS600 600A 600V Class K5 One-Time Fuse
Brand: Littelfuse
SKU: NLS600

Part Number: NLS600

● Contact for Availability

For a 600 amp fuse requirement, Littelfuse NLS600 provides 600V AC / 500V DC protection with one-time characteristics for general purpose, feeder circuits and branch circuit protection.

Rated Current600A

Rated Voltage600V AC / 500V DC

Breaking Capacity200kA AC

PackageClass K5

Tags

600A 600V class k5 Littelfuse NLS Series NLS600 one-time

Littelfuse NLS600 brings 600A/600V AC / 500V DC circuit protection to the NLS Series in a Class K5 one-time fuse format. Electrical protection is backed by a 200kA AC breaking capacity, with cartridge / clip mounting in the Class K5 format. For general purpose, feeder circuits and branch circuit protection, confirm final circuit suitability using the datasheet, UL 248-9 and applicable UL Listed and CSA marks.

Technical Specifications

Part Number: NLS600
Manufacturer Part Number: NLS600
Series: NLS Series
Fuse Type: Class K5 One-Time Fuse
Current Rating: 600A
Voltage Rating: 600V AC / 500V DC
AC / DC: AC/DC
Breaking Capacity: 200kA AC
Package / Dimensions: Class K5
Mounting: Cartridge / Clip
Application: Branch Circuit Protection · Feeder circuits · General purpose protection
Standard: UL 248-9
Terminal Type: Blade
Fuse Speed: One-Time
Utilization Class: Class K5
Approvals: CSA · UL Listed
Certifications: UL Listed · CSA
DC Voltage Rating: 500V DC
DC Interrupting Rating: 20kA
Fuse Class: Class K5
