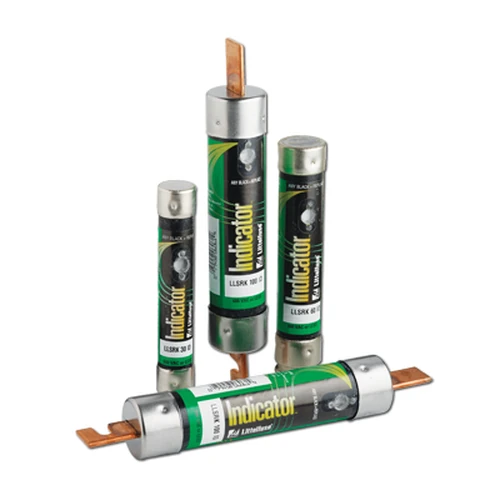

Littelfuse LLSRK6.25 6.25 A 600 V AC / 300 V DC Class RK1 Time-Delay Fuse

Name: Littelfuse LLSRK6.25 6.25 A 600 V AC / 300 V DC Class RK1 Time-Delay Fuse
Brand: Littelfuse
SKU: LLSRK6.25

Part Number: LLSRK6.25

● Contact for Availability

LLSRK6.25 is a Littelfuse Class RK1 time-delay fuse rated 6.25 A for 600 V AC / 300 V DC, intended for general-purpose circuits.

Rated Current6.25 A

Rated Voltage600 V AC / 300 V DC

Breaking Capacity200 kA AC / 20 kA DC

PackageClass R

Tags

6.25A 600 V AC / 300 V DC class rk1 Littelfuse LLSRK Series LLSRK6.25 time-delay

Littelfuse part LLSRK6.25 is a LLSRK fuse specified at 6.25 A, using a time-delay opening characteristic. Typical use includes general-purpose circuits. The series is built to UL 248-12, Class RK1 and rated 200 kA AC / 20 kA DC for fault interruption. Published series specifications reference UL 248-12, Class RK1; Federal Specification WF-1814; approvals include UL E81895; CSA LR29862. Verify coordination, derating and suitability against the current Littelfuse datasheet before design-in.

Technical Specifications

Part Number: LLSRK6.25
Manufacturer Part Number: LLSRK6.25
Series: LLSRK Series
Fuse Type: Dual-element current-limiting fuse
Current Rating: 6.25 A
Voltage Rating: 600 V AC / 300 V DC
AC / DC: AC/DC
Breaking Capacity: 200 kA AC / 20 kA DC
Operating Temperature: Refer to manufacturer datasheet
Package / Dimensions: Class R
Mounting: Cartridge / Clip · Fuse Holder
Application: General purpose circuits · Motor · Safety Upgrades · Transformers
Standard: Federal Specification WF-1814 · UL 248-12
Terminal Type: Ferrule or blade terminals by amp rating
Fuse Speed: Time Delay
Utilization Class: Class RK1
Approvals: CSA · UL
Certifications: UL Listed; CSA Certified; Littelfuse DC self-certified
Sample Status: Contact for sample availability
