Part LLNRK600 is a 600A member of the Littelfuse LLNRK Series with a 250V AC / 125V DC rating. Key electrical traits include POWR-PRO Class RK1 fuse operation and 200kA AC fault-current capability. Use the Littelfuse datasheet to verify final circuit suitability.
Submit directly from this product page. We will reply with availability, lead time and pricing.

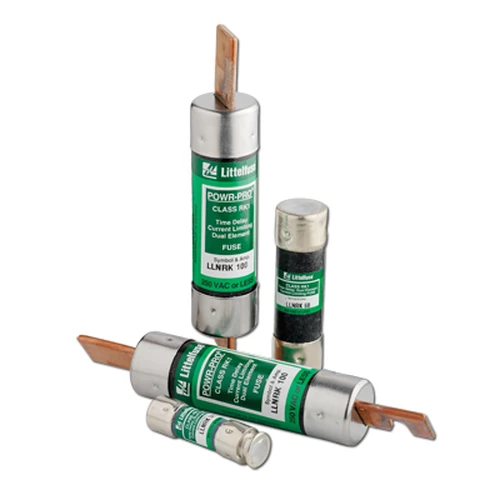

LLNRK600 is Littelfuse’s 600A configuration in the LLNRK Series, built as a Dual-Element Time-Delay Class RK1 Fuse for 250V AC / 125V DC service. Installation uses cartridge / clip hardware and ferrule / blade (amp-dependent) contacts; the principal interrupting rating is 200kA AC. Published dimensions for this rating/configuration are 263.5mm length; 65.9mm max body diameter. POWR-PRO Class RK1 construction emphasizes very strong current limitation for equipment-protection upgrades. The listed application set includes general-purpose circuits, Motor, Transformer, Safety Upgrades; final coordination should follow UL 248-12|Federal Specification WF-1814 and Littelfuse documentation.
