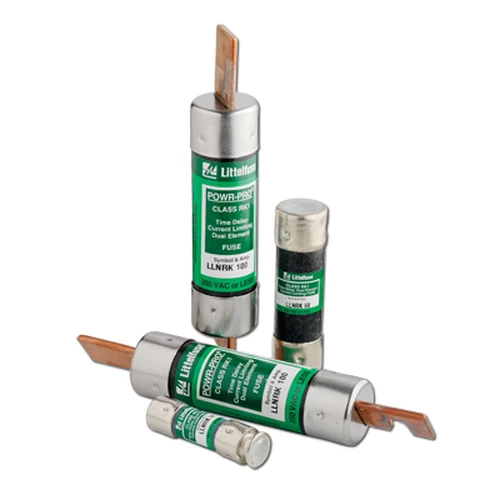

At 20A, Littelfuse LLNRK020 extends the LLNRK Series range for 250V AC / 125V DC applications. Its protection profile centers on POWR-PRO Class RK1 fuse operation plus 200kA AC fault interruption. Confirm application details against the manufacturer datasheet.
Submit directly from this product page. We will reply with availability, lead time and pricing.
The 20A Littelfuse LLNRK020 is part of the LLNRK Series and is designed around a 250V AC / 125V DC rating. A Class R body supports cartridge / clip installation, and the manufacturer lists 200kA AC as the principal interrupting capability. Published dimensions for this rating/configuration are 50.8mm length; 14.3mm max body diameter. POWR-PRO Class RK1 construction emphasizes very strong current limitation for equipment-protection upgrades. Typical uses cover general-purpose circuits, Motor, Transformer, Safety Upgrades. Check UL 248-12|Federal Specification WF-1814 and the manufacturer datasheet before final selection.
