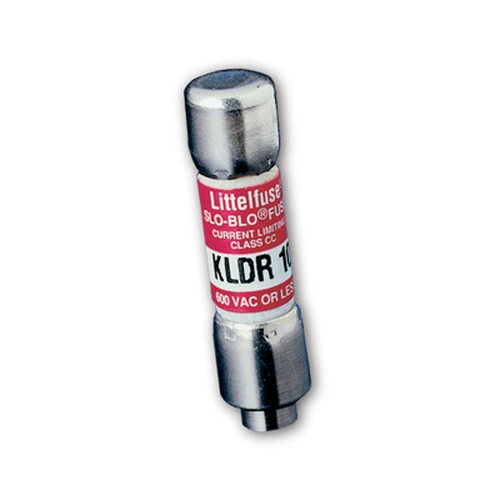

Littelfuse KLDR6.25 6.25 A 600 V AC / 300 V DC Class CC Time-Delay Fuse

Name: Littelfuse KLDR6.25 6.25 A 600 V AC / 300 V DC Class CC Time-Delay Fuse
Brand: Littelfuse
SKU: KLDR6.25

Part Number: KLDR6.25

● Contact for Availability

KLDR6.25 is a Littelfuse Class CC time-delay fuse rated 6.25 A for 600 V AC / 300 V DC, intended for control transformers.

Rated Current6.25 A

Rated Voltage600 V AC / 300 V DC

Breaking Capacity200 kA AC / 20 kA DC

PackageClass CC

Tags

6.25A 600 V AC / 300 V DC class cc KLDR Series KLDR6.25 Littelfuse time-delay

Littelfuse KLDR6.25 combines a 6.25 A rating with time-delay operation in the KLDR family. Typical use includes control transformers. The series is built to UL 248-4, Class CC and rated 200 kA AC / 20 kA DC for fault interruption. Published series specifications reference UL 248-4, Class CC; approvals include UL E81895; CSA LR29862; CE EU_DOC-KLDR_P_210128. Verify coordination, derating and suitability against the current Littelfuse datasheet before design-in.

Technical Specifications

Part Number: KLDR6.25
Manufacturer Part Number: KLDR6.25
Series: KLDR Series
Fuse Type: Current-limiting Class CC fuse
Current Rating: 6.25 A
Voltage Rating: 600 V AC / 300 V DC
AC / DC: AC/DC
Breaking Capacity: 200 kA AC / 20 kA DC
Operating Temperature: Refer to manufacturer datasheet
Package / Dimensions: Class CC
Mounting: Cartridge / Clip · Fuse Holder
Application: Control transformers · Inductive loads · Motor Branch Circuits · Solenoid
Standard: UL 248-4
Terminal Type: Ferrule end caps
Fuse Speed: Time Delay
Utilization Class: Class CC
Approvals: CE · CSA · UL
Certifications: UL Listed; CSA Certified; CE; RoHS compliant
Sample Status: Contact for sample availability
