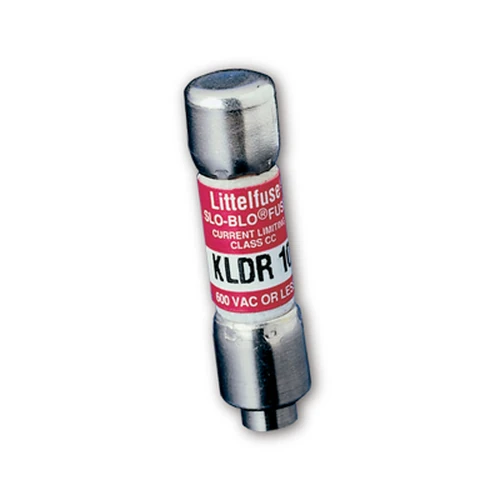

Littelfuse KLDR006 6 A 600 V AC / 300 V DC Class CC Time-Delay Fuse

Name: Littelfuse KLDR006 6 A 600 V AC / 300 V DC Class CC Time-Delay Fuse
Brand: Littelfuse
SKU: KLDR006

Part Number: KLDR006

● Contact for Availability

KLDR006 is a Littelfuse Class CC time-delay fuse rated 6 A for 600 V AC / 300 V DC, intended for control transformers.

Rated Current6 A

Rated Voltage600 V AC / 300 V DC

Breaking Capacity200 kA AC / 20 kA DC

PackageClass CC

Tags

600 V AC / 300 V DC 6A class cc KLDR Series KLDR006 Littelfuse time-delay

KLDR006 is a Littelfuse KLDR time-delay fuse rated 6 A for 600 V AC / 300 V DC. It is suited to control transformers and uses the Class CC format with 200 kA AC / 20 kA DC interrupting capability. Published series specifications reference UL 248-4, Class CC; approvals include UL E81895; CSA LR29862; CE EU_DOC-KLDR_P_210128. Verify coordination, derating and suitability against the current Littelfuse datasheet before design-in.

Technical Specifications

Part Number: KLDR006
Manufacturer Part Number: KLDR006
Series: KLDR Series
Fuse Type: Current-limiting Class CC fuse
Current Rating: 6 A
Voltage Rating: 600 V AC / 300 V DC
AC / DC: AC/DC
Breaking Capacity: 200 kA AC / 20 kA DC
Operating Temperature: Refer to manufacturer datasheet
Package / Dimensions: Class CC
Mounting: Cartridge / Clip · Fuse Holder
Application: Control transformers · Inductive loads · Motor Branch Circuits · Solenoid
Standard: UL 248-4
Terminal Type: Ferrule end caps
Fuse Speed: Time Delay
Utilization Class: Class CC
Approvals: CE · CSA · UL
Certifications: UL Listed; CSA Certified; CE; RoHS compliant
Sample Status: Contact for sample availability
