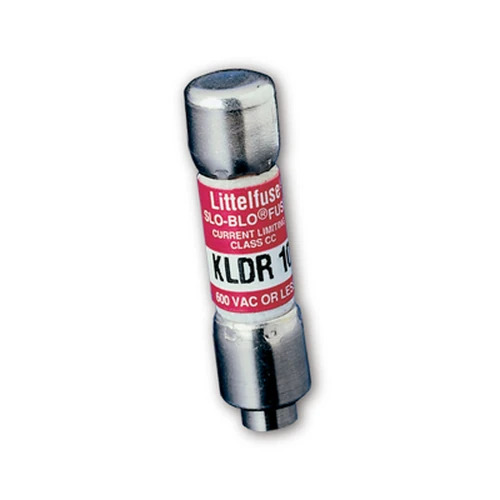

Littelfuse KLDR.750 0.75 A 600 V AC / 300 V DC Class CC Time-Delay Fuse

Name: Littelfuse KLDR.750 0.75 A 600 V AC / 300 V DC Class CC Time-Delay Fuse
Brand: Littelfuse
SKU: KLDR.750

Part Number: KLDR.750

● Contact for Availability

KLDR.750 is a Littelfuse Class CC time-delay fuse rated 0.75 A for 600 V AC / 300 V DC, intended for control transformers.

Rated Current0.75 A

Rated Voltage600 V AC / 300 V DC

Breaking Capacity200 kA AC / 20 kA DC

PackageClass CC

Tags

0.75A 600 V AC / 300 V DC class cc KLDR Series KLDR.750 Littelfuse time-delay

Littelfuse part KLDR.750 is a KLDR fuse specified at 0.75 A, using a time-delay opening characteristic. Typical use includes control transformers. The series is built to UL 248-4, Class CC and rated 200 kA AC / 20 kA DC for fault interruption. Published series specifications reference UL 248-4, Class CC; approvals include UL E81895; CSA LR29862; CE EU_DOC-KLDR_P_210128. Verify coordination, derating and suitability against the current Littelfuse datasheet before design-in.

Technical Specifications

Part Number: KLDR.750
Manufacturer Part Number: KLDR.750
Series: KLDR Series
Fuse Type: Current-limiting Class CC fuse
Current Rating: 0.75 A
Voltage Rating: 600 V AC / 300 V DC
AC / DC: AC/DC
Breaking Capacity: 200 kA AC / 20 kA DC
Operating Temperature: Refer to manufacturer datasheet
Package / Dimensions: Class CC
Mounting: Cartridge / Clip · Fuse Holder
Application: Control transformers · Inductive loads · Motor Branch Circuits · Solenoid
Standard: UL 248-4
Terminal Type: Ferrule end caps
Fuse Speed: Time Delay
Utilization Class: Class CC
Approvals: CE · CSA · UL
Certifications: UL Listed; CSA Certified; CE; RoHS compliant
Sample Status: Contact for sample availability
