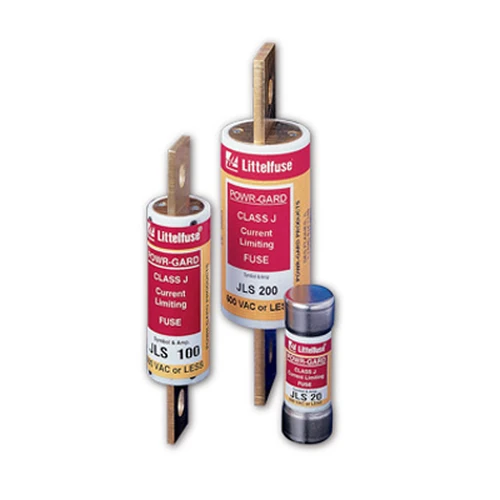

The 25A JLS025 belongs to the Littelfuse JLS Series. For circuit selection, the principal values are 600V AC and 200kA AC breaking capacity. The fast-acting, current-limiting design targets surge-sensitive industrial and power-conversion equipment. Use the linked Littelfuse datasheet to confirm coordination, approvals and installation details.
Submit directly from this product page. We will reply with availability, lead time and pricing.
Within Littelfuse’s JLS Series, JLS025 covers the 25A rating point. Circuit selection should account for 600V AC operation and the stated 200kA AC interrupting level. The fast-acting, current-limiting design targets surge-sensitive industrial and power-conversion equipment. For installation, the listed format is Class J; mounting is Cartridge / Clip, with ferrule / blade (amp-dependent) terminals. Published dimensions are 57.2mm length; 20.6mm max body diameter. Typical applications include Power Electronics, Variable Speed Drives, Rectifiers, Resistive Loads, Solid-State Devices. Check the official Littelfuse datasheet before final coordination.
