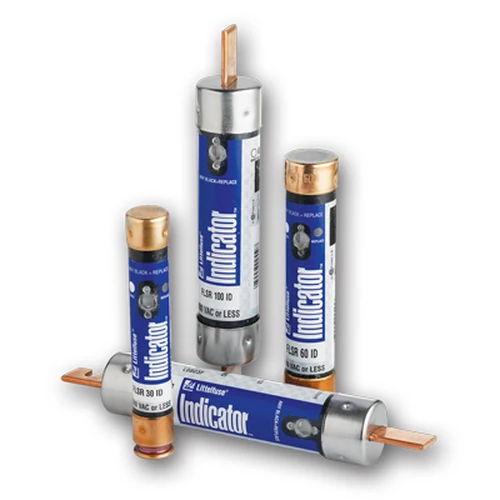

At 5.6A, Littelfuse FLSR05.6 extends the FLSR Series range for 600V AC / 300V DC applications. The construction uses dual-element Class RK5 fuse characteristics and a 200kA AC primary interrupting rating. Confirm application details against the manufacturer datasheet.
Submit directly from this product page. We will reply with availability, lead time and pricing.
The 5.6A Littelfuse FLSR05.6 is part of the FLSR Series and is designed around a 600V AC / 300V DC rating. The physical format is Class R; mounting is cartridge / clip, with ferrule / blade (amp-dependent) termination and 200kA AC rated interruption. Published dimensions for this rating/configuration are 127.0mm length; 20.7mm max body diameter. Its dual-element time-delay behavior is intended to ride through normal motor inrush while protecting against overloads and short circuits. Typical uses cover Motor, Transformer, Service Entrance, Feeder Circuits, general-purpose circuits. Check UL 248-12 and the manufacturer datasheet before final selection.
