Littelfuse

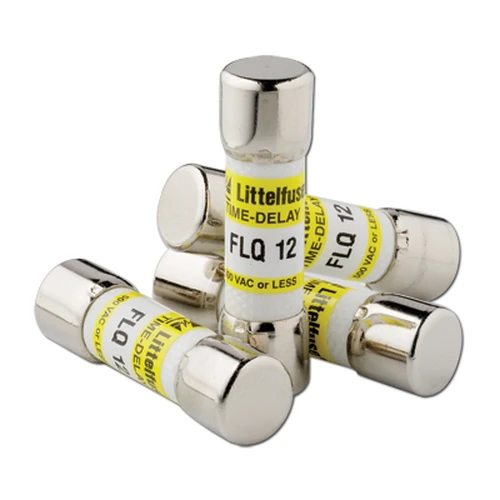

Littelfuse FLQ2.25 2.25A 500V Time-Delay Midget Fuse

Name: Littelfuse FLQ2.25 2.25A 500V Time-Delay Midget Fuse
Brand: Littelfuse
SKU: FLQ2.25

Part Number: FLQ2.25

● Contact for Availability

The FLQ Series FLQ2.25 is a Littelfuse time-delay midget fuse rated 2.25A at 500V AC, suited to motor, transformer and control circuits.

Rated Current2.25A

Rated Voltage500V AC

Breaking Capacity10kA

Package10×38mm

Tags

10×38mm 2.25A 500V FLQ Series FLQ2.25 Littelfuse time-delay

The FLQ2.25 from Littelfuse’s FLQ Series provides time-delay protection at 2.25A and 500V AC. The device uses ferrule terminals in a 10×38mm body and carries a 10kA interrupting rating. Typical applications include motor, transformer and control circuits; the product is listed to UL 248-14 with UL Listed, CSA, CE and RoHS approvals.
