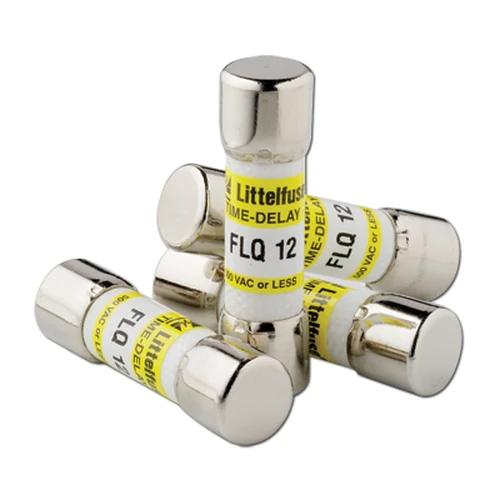

Littelfuse FLQ04.5 4.5A 500V Time-Delay Midget Fuse

Name: Littelfuse FLQ04.5 4.5A 500V Time-Delay Midget Fuse
Brand: Littelfuse
SKU: FLQ04.5

Part Number: FLQ04.5

● Contact for Availability

FLQ04.5 pairs a 4.5A rating with 500V AC operation in Littelfuse’s FLQ Series, for applications including motor, transformer and control circuits.

Rated Current4.5A

Rated Voltage500V AC

Breaking Capacity10kA

Package10×38mm

Tags

10×38mm 4.5A 500V FLQ Series FLQ04.5 Littelfuse time-delay

FLQ04.5 is the 4.5A version of Littelfuse’s FLQ Series, using time-delay characteristics at 500V AC. With 38.1 × 10.31mm dimensions and a 10kA interrupting rating, the fuse suits the listed cartridge / clip mounting style. Typical applications include motor, transformer and control circuits; the product is listed to UL 248-14 with UL Listed, CSA, CE and RoHS approvals.
