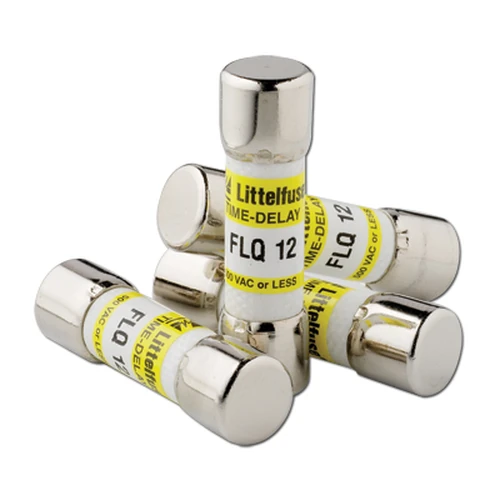

Littelfuse FLQ02.5 2.5A 500V Time-Delay Midget Fuse

Name: Littelfuse FLQ02.5 2.5A 500V Time-Delay Midget Fuse
Brand: Littelfuse
SKU: FLQ02.5

Part Number: FLQ02.5

● Contact for Availability

Littelfuse FLQ02.5 provides 2.5A/500V AC protection with time-delay characteristics and 10kA interrupting capacity.

Rated Current2.5A

Rated Voltage500V AC

Breaking Capacity10kA

Package10×38mm

Tags

10×38mm 2.5A 500V FLQ Series FLQ02.5 Littelfuse time-delay

For 2.5A circuits, Littelfuse FLQ02.5 offers 500V AC capability as a time-delay midget fuse. With 38.1 × 10.31mm dimensions and a 10kA interrupting rating, the fuse suits the listed cartridge / clip mounting style. Typical applications include motor, transformer and control circuits; the product is listed to UL 248-14 with UL Listed, CSA, CE and RoHS approvals.
