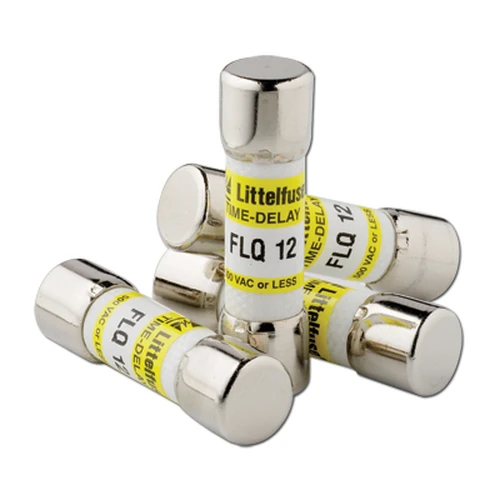

Littelfuse FLQ012 12A 500V Time-Delay Midget Fuse

Name: Littelfuse FLQ012 12A 500V Time-Delay Midget Fuse
Brand: Littelfuse
SKU: FLQ012

Part Number: FLQ012

● Contact for Availability

Built for motor, transformer and control circuits, Littelfuse FLQ012 combines 12A protection, 500V AC capability and a 10×38mm form factor.

Rated Current12A

Rated Voltage500V AC

Breaking Capacity10kA

Package10×38mm

Tags

10×38mm 12A 500V FLQ Series FLQ012 Littelfuse time-delay

Rated 12A at 500V AC, Littelfuse FLQ012 is a time-delay midget fuse in the FLQ Series. With 38.1 × 10.31mm dimensions and a 10kA interrupting rating, the fuse suits the listed cartridge / clip mounting style. Typical applications include motor, transformer and control circuits; the product is listed to UL 248-14 with UL Listed, CSA, CE and RoHS approvals.
