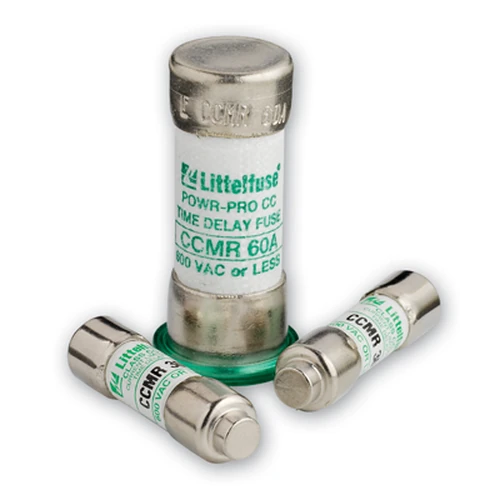

Littelfuse CCMR17.5 17.5A 600V Class CC Dual-Element Time-Delay Fuse

Name: Littelfuse CCMR17.5 17.5A 600V Class CC Dual-Element Time-Delay Fuse
Brand: Littelfuse
SKU: CCMR17.5

Part Number: CCMR17.5

● Contact for Availability

This Littelfuse dual-element time-delay Class CC fuse, part CCMR17.5, is rated 17.5A/600V AC / 500V DC and uses a 10×38mm package.

Rated Current17.5A

Rated Voltage600V AC / 500V DC

Breaking Capacity200kA AC

Package10×38mm

Tags

17.5A 600V CCMR Series CCMR17.5 class cc Littelfuse time-delay

Rated 17.5A at 600V AC / 500V DC, Littelfuse CCMR17.5 is a dual-element time-delay Class CC fuse in the CCMR Series. Physical configuration is 10×38mm (38.1 × 10.3mm), with ferrule terminals and 200kA AC interrupting capability. For motor, contactor protection and heating, confirm final circuit suitability using the datasheet, UL 248-4 and applicable UL Listed, CSA, CE and RoHS marks.

Technical Specifications

Part Number: CCMR17.5
Manufacturer Part Number: CCMR17.5
Series: CCMR Series
Fuse Type: Dual-Element Time-Delay Class CC Fuse
Current Rating: 17.5A
Voltage Rating: 600V AC / 500V DC
AC / DC: AC/DC
Breaking Capacity: 200kA AC
Package / Dimensions: 10×38mm
Mounting: Cartridge / Clip
Application: Contactor Protection · Heating · Industrial Control Protection · Motor
Standard: UL 248-4
Terminal Type: Ferrule
Fuse Speed: Dual Element · Time Delay
Utilization Class: Class CC
Approvals: CE · CSA · RoHS · UL Listed
Certifications: UL Listed · CSA · CE · RoHS
DC Voltage Rating: 500V DC
DC Interrupting Rating: 20kA
