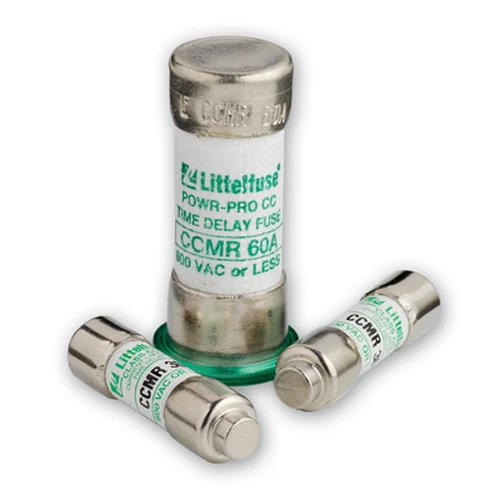

Littelfuse CCMR009 9A 600V Class CC Dual-Element Time-Delay Fuse

Name: Littelfuse CCMR009 9A 600V Class CC Dual-Element Time-Delay Fuse
Brand: Littelfuse
SKU: CCMR009

Part Number: CCMR009

● Contact for Availability

CCMR009 pairs a 9A rating with 600V AC / 300V DC operation in Littelfuse’s CCMR Series, for applications including motor, contactor protection and heating.

Rated Current9A

Rated Voltage600V AC / 300V DC

Breaking Capacity200kA AC

Package10×38mm

Tags

600V 9A CCMR Series CCMR009 class cc Littelfuse time-delay

Rated 9A at 600V AC / 300V DC, Littelfuse CCMR009 is a dual-element time-delay Class CC fuse in the CCMR Series. The device uses ferrule terminals in a 10×38mm body and carries a 200kA AC interrupting rating. For motor, contactor protection and heating, confirm final circuit suitability using the datasheet, UL 248-4 and applicable UL Listed, CSA, CE and RoHS marks.

Technical Specifications

Part Number: CCMR009
Manufacturer Part Number: CCMR009
Series: CCMR Series
Fuse Type: Dual-Element Time-Delay Class CC Fuse
Current Rating: 9A
Voltage Rating: 600V AC / 300V DC
AC / DC: AC/DC
Breaking Capacity: 200kA AC
Package / Dimensions: 10×38mm
Mounting: Cartridge / Clip
Application: Contactor Protection · Heating · Industrial Control Protection · Motor
Standard: UL 248-4
Terminal Type: Ferrule
Fuse Speed: Dual Element · Time Delay
Utilization Class: Class CC
Approvals: CE · CSA · RoHS · UL Listed
Certifications: UL Listed · CSA · CE · RoHS
DC Voltage Rating: 300V DC
DC Interrupting Rating: 20kA
