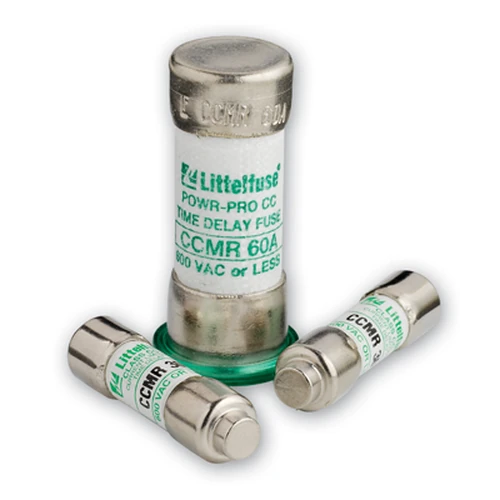

Littelfuse CCMR005 5A 600V Class CC Dual-Element Time-Delay Fuse

Name: Littelfuse CCMR005 5A 600V Class CC Dual-Element Time-Delay Fuse
Brand: Littelfuse
SKU: CCMR005

Part Number: CCMR005

● Contact for Availability

Littelfuse CCMR005 offers dual-element time-delay protection at 5A and 600V AC / 300V DC, with UL Listed, CSA, CE and RoHS approvals.

Rated Current5A

Rated Voltage600V AC / 300V DC

Breaking Capacity200kA AC

Package10×38mm

Tags

5A 600V CCMR Series CCMR005 class cc Littelfuse time-delay

Littelfuse’s CCMR005 is a 5A dual-element time-delay Class CC fuse rated for 600V AC / 300V DC operation. With 38.1 × 10.3mm dimensions and a 200kA AC interrupting rating, the fuse suits the listed cartridge / clip mounting style. For motor, contactor protection and heating, confirm final circuit suitability using the datasheet, UL 248-4 and applicable UL Listed, CSA, CE and RoHS marks.

Technical Specifications

Part Number: CCMR005
Manufacturer Part Number: CCMR005
Series: CCMR Series
Fuse Type: Dual-Element Time-Delay Class CC Fuse
Current Rating: 5A
Voltage Rating: 600V AC / 300V DC
AC / DC: AC/DC
Breaking Capacity: 200kA AC
Package / Dimensions: 10×38mm
Mounting: Cartridge / Clip
Application: Contactor Protection · Heating · Industrial Control Protection · Motor
Standard: UL 248-4
Terminal Type: Ferrule
Fuse Speed: Dual Element · Time Delay
Utilization Class: Class CC
Approvals: CE · CSA · RoHS · UL Listed
Certifications: UL Listed · CSA · CE · RoHS
DC Voltage Rating: 300V DC
DC Interrupting Rating: 20kA
