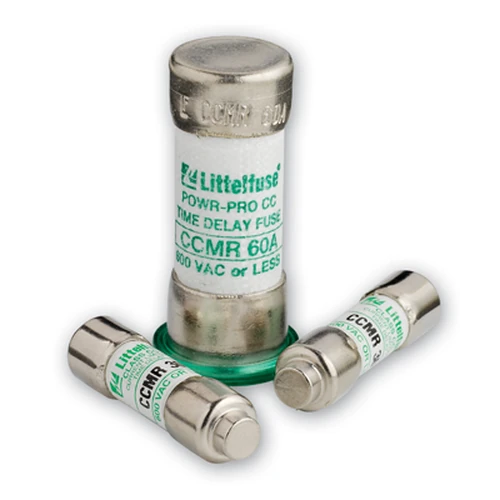

Littelfuse CCMR.600 0.6A 600V Class CC Dual-Element Time-Delay Fuse

Name: Littelfuse CCMR.600 0.6A 600V Class CC Dual-Element Time-Delay Fuse
Brand: Littelfuse
SKU: CCMR.600

Part Number: CCMR.600

● Contact for Availability

For 0.6A circuit protection at 600V AC / 300V DC, Littelfuse CCMR.600 uses a dual-element time-delay Class CC fuse design with 200kA AC capability.

Rated Current0.6A

Rated Voltage600V AC / 300V DC

Breaking Capacity200kA AC

Package10×38mm

Tags

0.6A 600V CCMR Series CCMR.600 class cc Littelfuse time-delay

Littelfuse CCMR.600 brings 0.6A/600V AC / 300V DC circuit protection to the CCMR Series in a dual-element time-delay Class CC fuse format. With 38.1 × 10.3mm dimensions and a 200kA AC interrupting rating, the fuse suits the listed cartridge / clip mounting style. For motor, contactor protection and heating, confirm final circuit suitability using the datasheet, UL 248-4 and applicable UL Listed, CSA, CE and RoHS marks.

Technical Specifications

Part Number: CCMR.600
Manufacturer Part Number: CCMR.600
Series: CCMR Series
Fuse Type: Dual-Element Time-Delay Class CC Fuse
Current Rating: 0.6A
Voltage Rating: 600V AC / 300V DC
AC / DC: AC/DC
Breaking Capacity: 200kA AC
Package / Dimensions: 10×38mm
Mounting: Cartridge / Clip
Application: Contactor Protection · Heating · Industrial Control Protection · Motor
Standard: UL 248-4
Terminal Type: Ferrule
Fuse Speed: Dual Element · Time Delay
Utilization Class: Class CC
Approvals: CE · CSA · RoHS · UL Listed
Certifications: UL Listed · CSA · CE · RoHS
DC Voltage Rating: 300V DC
DC Interrupting Rating: 20kA
