Littelfuse 0230003MXP 3A 2AG Slo-Blo Axial Fuse
● Contact for AvailabilityLittelfuse 230 Series 0230003MXP: 3 A Slo-Blo axial glass fuse, 250 VAC / 125 VDC, with bulk MX configuration.
Rated Current3 A
Rated Voltage250 V AC / 125 V DC
Breaking Capacity100 A @ 250 VAC; 10 kA @ 125 VAC/VDC; 80 A @ 310 VAC
Package2AG (4.5×15mm)
QUICK RFQ
Request a quote for 0230003MXP
Submit directly from this product page. We will reply with availability, lead time and pricing.
Part Number0230003MXPBrandLittelfuseRequested Qty100
Littelfuse 0230003MXP uses a glass 2AG body and axial leads to deliver 3 A time-delay circuit protection. The 3 A variant is characterized by 77 A²s nominal melting I²t and 100 A @ 250 VAC; 10 kA @ 125 VAC/VDC; 80 A @ 310 VAC. For procurement, this SKU is differentiated by bulk packaging, 1,000-piece manufacturer pack code, while the core electrical rating follows the 230 Series data.
Technical Specifications
- Part Number
- 0230003MXP
- Manufacturer Part Number
- 0230003MXP
- Series
- 230 Series
- Fuse Type
- 2AG Glass Axial Lead Fuse
- Current Rating
- 3 A
- Voltage Rating
- 250 V AC / 125 V DC
- AC / DC
- AC/DC
- Breaking Capacity
- 100 A @ 250 VAC; 10 kA @ 125 VAC/VDC; 80 A @ 310 VAC
- I²t
- 77 A²s nominal melting I²t
- Pre-arcing I²t
- 77
- Operating Temperature
- −55°C to +125°C
- Package / Dimensions
- 2AG (4.5×15mm)
- Mounting
- PCB Through-Hole
- Application
- Telecom DC distribution
- Standard
- UL/CSA/NMX 248-1 and 248-14
- Terminal Type
- Tin-plated copper axial leads
- Fuse Speed
- Time Delay
- Approvals
- CE · CSA · RoHS · UL Recognized
- Certifications
- UL; CSA; PSE; CE; RoHS; Lead-Free
- Series construction
- 230 Series axial-leaded 2AG Slo-Blo fuse
- Ordering configuration
- bulk packaging, 1,000-piece manufacturer pack code
- Body/caps/leads
- Glass / nickel-plated brass / tin-plated copper
- Lead-free suffix
- P where shown in full order code
Downloads
Littelfuse 0229003 3A 250V 2AG Time-Delay Glass Fuse
0229003
3A · 250 V AC/DC
Littelfuse 022902.5 2.5A 250V 2AG Time-Delay Glass Fuse
022902.5
2.5A · 250 V AC/DC
Littelfuse 02292.25 2.25A 250V 2AG Time-Delay Glass Fuse
02292.25
2.25A · 250 V AC/DC
Littelfuse 0229002 2A 250V 2AG Time-Delay Glass Fuse
0229002
2A · 250 V AC/DC
Littelfuse 022901.5 1.5A 250V 2AG Time-Delay Glass Fuse
022901.5
1.5A · 250 V AC/DC
Littelfuse 02291.25 1.25A 250V 2AG Time-Delay Glass Fuse
02291.25
1.25A · 250 V AC/DC
Littelfuse 0229001 1A 250V 2AG Time-Delay Glass Fuse
0229001
1A · 250 V AC/DC

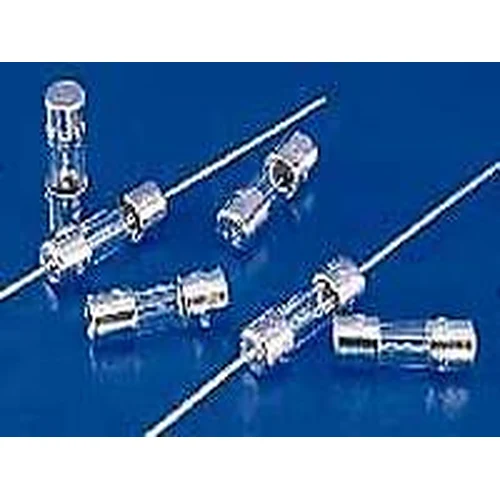

Littelfuse 0229.800 0.8A 250V 2AG Time-Delay Glass Fuse
