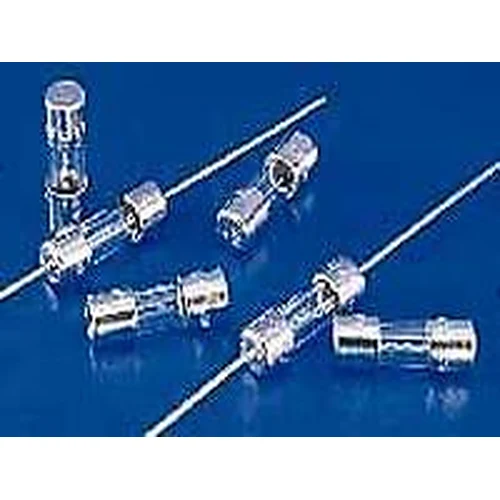

Littelfuse 022903.5MXSP 3.5A 250V 2AG Time-Delay Glass Fuse

Name: Littelfuse 022903.5MXSP 3.5A 250V 2AG Time-Delay Glass Fuse
Brand: Littelfuse
SKU: 022903.5MXSP

Part Number: 022903.5MXSP

● Contact for Availability

022903.5MXSP is a 3.5A Littelfuse 229 Series part for time-delay 2AG glass-cartridge protection, including telecom pulse-withstand applications; this ordering code uses 1000 pcs, bulk, tripped-fuse indicating option, lead-free.

Rated Current3.5A

Rated Voltage250 V AC/DC

Breaking Capacity100 A @ 250 VAC; 10 kA @ 125 VAC/VDC

Package2AG (4.5×15mm)

Tags

022903.5MXSP 229 Series 3.5A Glass Cartridge Fuse Littelfuse time-delay

022903.5MXSP is a Littelfuse 229 Series ordering option rated 3.5A. It is designed for time-delay 2AG glass-cartridge protection, including telecom pulse-withstand applications. 2AG Slo-Blo® glass cartridge, 250 V maximum; nominal melting I²t 110 A²s; operating temperature -55°C to +125°C. The selected ordering configuration is 1000 pcs, bulk, tripped-fuse indicating option, lead-free. Verify coordination, ambient derating and the exact ordering code against the current Littelfuse datasheet before design-in.

Technical Specifications

Part Number: 022903.5MXSP
Manufacturer Part Number: 022903.5MXSP
Series: 229 Series
Fuse Type: Glass Cartridge Fuse
Current Rating: 3.5A
Voltage Rating: 250 V AC/DC
AC / DC: AC/DC
Breaking Capacity: 100 A @ 250 VAC; 10 kA @ 125 VAC/VDC
I²t: 110 A²s
Pre-arcing I²t: 110
Operating Temperature: -55°C to +125°C
Package / Dimensions: 2AG (4.5×15mm)
Mounting: Cartridge / Clip
Application: Electronic equipment · Pulse-withstand protection · Telecommunications circuits
Standard: UL/CSA 248-14
Terminal Type: Nickel-plated brass end caps
Fuse Speed: Time Delay
Approvals: CSA · PSE · UL
Certifications: UL Recognized; CSA; PSE by rating
