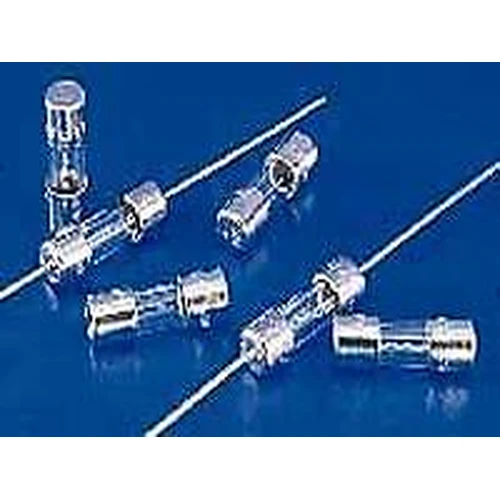

Littelfuse 022402.5 2.5A Fast-Acting 2AG Axial Lead Fuse
● Contact for Availability022402.5 pairs a 2.5A rating with 250V AC operation in Littelfuse’s 224 Series, for applications including appliances and power electronics.
Rated Current2.5A
Rated Voltage250V AC
Breaking Capacity100A
Package2AG (4.5×15mm)
QUICK RFQ
Request a quote for 022402.5
Submit directly from this product page. We will reply with availability, lead time and pricing.
Part Number022402.5BrandLittelfuseRequested Qty100
Littelfuse 022402.5 is a 2.5A, 250V AC 2AG fast-acting axial lead fuse from the 224 Series. The 2AG (4.5×15mm) format measures Body Ø4.2–4.8 × 14.1–14.9mm; axial leads 38.1mm typ. and uses axial lead terminations; interrupting capacity is 100A. Use cases in the catalog include appliances and power electronics. Compliance references include UL 248-14 and UL Listed, CSA, CE and RoHS.
Technical Specifications
- Part Number
- 022402.5
- Manufacturer Part Number
- 022402.5
- Series
- 224 Series
- Fuse Type
- 2AG Fast-Acting Axial Lead Fuse
- Current Rating
- 2.5A
- Voltage Rating
- 250V AC
- AC / DC
- AC
- Breaking Capacity
- 100A
- Operating Temperature
- -55°C to +125°C
- Package / Dimensions
- 2AG (4.5×15mm)
- Mounting
- PCB Through-Hole
- Application
- Appliances · Power Electronics
- Standard
- UL 248-14
- Terminal Type
- Axial Lead
- Fuse Speed
- Fast Acting (F)
- Utilization Class
- Supplemental
- Approvals
- CE · CSA · RoHS · UL Listed
- Certifications
- UL Listed · CSA · CE · RoHS
- Body
- Glass
