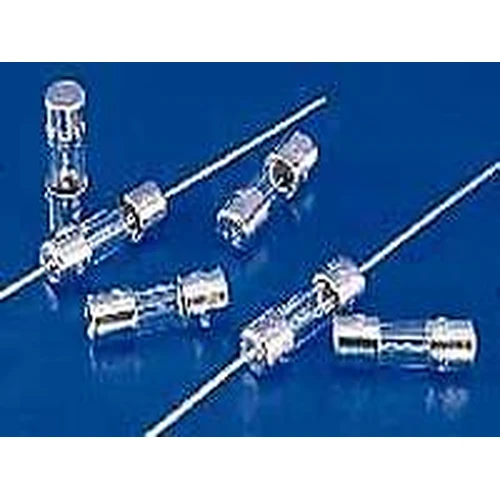

Littelfuse 0224004 4A Fast-Acting 2AG Axial Lead Fuse

Name: Littelfuse 0224004 4A Fast-Acting 2AG Axial Lead Fuse
Brand: Littelfuse
SKU: 0224004

Part Number: 0224004

● Contact for Availability

This Littelfuse 2AG fast-acting axial lead fuse, part 0224004, is rated 4A/125V AC and uses a 2AG (4.5×15mm) package.

Rated Current4A

Rated Voltage125V AC

Breaking Capacity500A

Package2AG (4.5×15mm)

Tags

0224004 125V 224 Series 2AG (4.5×15mm)4A fast acting (f)Littelfuse

Littelfuse 0224004 brings 4A/125V AC circuit protection to the 224 Series in a 2AG fast-acting axial lead fuse format. The 2AG (4.5×15mm) format measures Body Ø4.2–4.8 × 14.1–14.9mm; axial leads 38.1mm typ. and uses axial lead terminations; interrupting capacity is 500A. Use cases in the catalog include appliances and power electronics. Compliance references include UL 248-14 and UL Listed, CSA, CE and RoHS.
