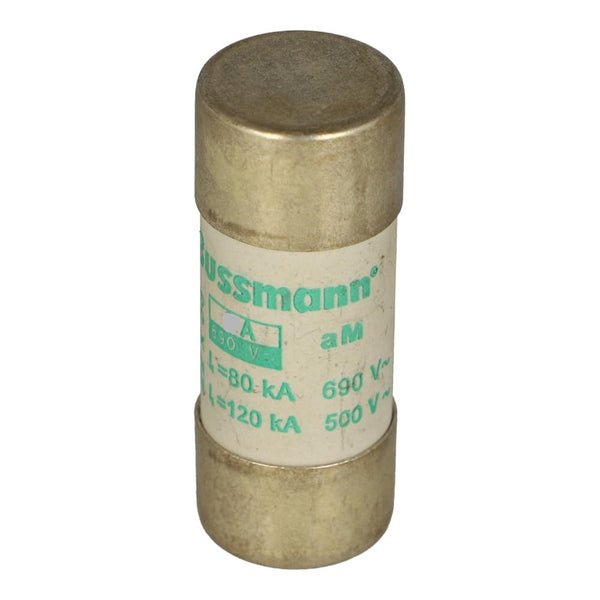

Bussmann C22M125 125A 690V AC C22M IEC cylindrical fuse
Eaton Bussmann

Bussmann C22M125 125A 690V AC C22M IEC cylindrical fuse

Part Number: C22M125

● LT: 12-16w

Eaton Bussmann C22M125, 125A, 690V AC; interrupting rating 80kA AC.

Rated Current125A
Rated Voltage690V AC
Breaking Capacity80kA AC
PackageIEC
Tags
Share

Eaton Bussmann C22M125 is a Class aM motor circuit am C22M IEC cylindrical fuse rated 125A at 690V AC. Interrupting rating: 80kA AC. Standard(s): IEC 60269.

Technical Specifications

Part Number
C22M125
Manufacturer Part Number
C22M-125
Series
C22M Series (IEC 60269 Class aM Ferrule)
Fuse Type
Branch Circuit Fuse
Current Rating
125A
Voltage Rating
690V AC
AC / DC
AC
Breaking Capacity
80kA AC
I²t
N/A (IEC)
Operating Temperature
-40°C to +125°C
Package / Dimensions
IEC
Mounting
Ferrule / Clip
Application
Motor Starters · Short-circuit only protection
Standard
IEC 60269
Terminal Type
Ferrule
Utilization Class
aM
Approvals
CE · RoHS
Certifications
IEC 60269|CE|RoHS
Reference Lead Time
12-16 weeks
Minimum Order
10 pcs
Sample Status
Contact for Availability
Pre-arcing I²t
Clearing I²t: Watt Loss @ In: 9.0W
