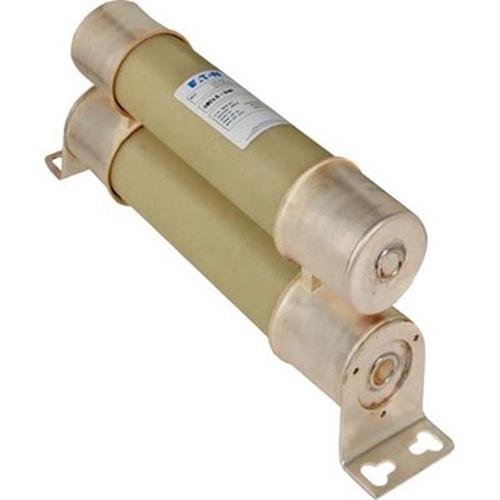

Bussmann 5BCLS-36R 650A 4.8kV AC R-Rated current-limiting motor fuse
Eaton Bussmann

Bussmann 5BCLS-36R 650A 4.8kV AC R-Rated current-limiting motor fuse

Part Number: 5BCLS-36R

● LT: 12-16w

Eaton Bussmann 5BCLS-36R, 650A, 4.8kV AC; interrupting rating 50kA Sym / 80kA Asym.

Rated Current650A
Rated Voltage4.8kV AC
Breaking Capacity50kA Sym / 80kA Asym
PackageR-Rated Bolt-In
Tags
Share

Eaton Bussmann 5BCLS-36R is a R-Rated / Class R R-Rated current-limiting motor fuse rated 650A at 4.8kV AC. Interrupting rating: 50kA Sym / 80kA Asym. Standards: ANSI C37.46|IEEE C37.41. R designation: 36R. Bolt-in construction.

Technical Specifications

Part Number
5BCLS-36R
Manufacturer Part Number
5BCLS-36R
Series
5BCLS
Fuse Type
R-Rated Medium Voltage Motor Fuse
Current Rating
650A
Voltage Rating
4.8kV AC
AC / DC
AC
Breaking Capacity
50kA Sym / 80kA Asym
Operating Temperature
-40°C to +125°C
Package / Dimensions
R-Rated Bolt-In
Mounting
Bolt Mount
Application
Motor protection
Standard
ANSI C37.46 · ANSI/IEEE R-Rated · IEEE C37.41
Terminal Type
Bolt-In
Utilization Class
Class R · R-Rated
Approvals
IEEE Std. C37.41
Certifications
IEEE Std. C37.41
Reference Lead Time
12-16 weeks
Minimum Order
10 pcs
Sample Status
Contact for Availability
R designation
36R
Rated current
650A
Nominal voltage
4.8kV AC
Interrupting rating
50kA symmetrical / 80kA asymmetrical

Downloads

DatasheetOpen / download →
