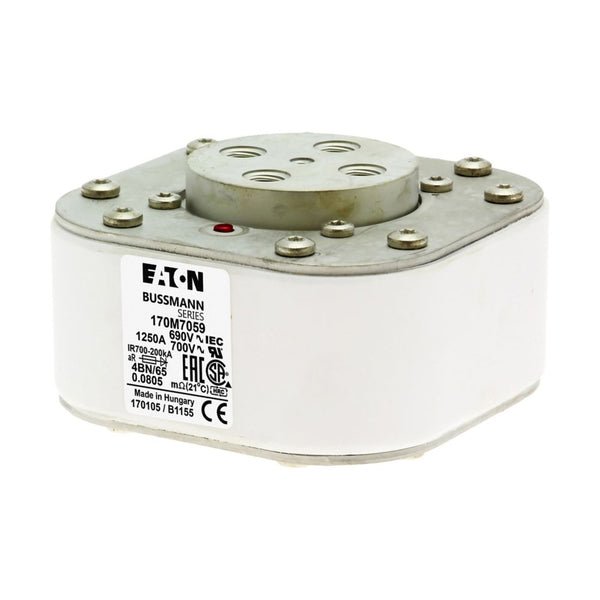

Bussmann 170M7059 1250A 690V AC (IEC) / 700V AC (UL) 170M high-speed square-body fuse
● LT: 4-6wEaton Bussmann 170M7059, 1250A, 690V AC (IEC) / 700V AC (UL), Class aR; interrupting rating 200kA RMS Sym..
Rated Current1250A
Rated Voltage690V AC (IEC) / 700V AC (UL)
Breaking Capacity200kA RMS Sym.
PackageFlush-End Size 4
QUICK RFQ
Request a quote for 170M7059
Submit directly from this product page. We will reply with availability, lead time and pricing.
Part Number170M7059BrandEaton BussmannRequested Qty100
Eaton Bussmann 170M7059 is a 170M Class aR high-speed square-body fuse rated 1250A at 690V AC (IEC) / 700V AC (UL). Interrupting rating: 200kA RMS Sym.. Typical application: Power rectifiers|Large UPS|Industrial drives. Standard(s): IEC 60269-4|UL 248-13.
Technical Specifications
- Part Number
- 170M7059
- Manufacturer Part Number
- 170M7059
- Series
- 170M Series (690V AC Flush-End Size 4)
- Fuse Type
- High-Speed Square Body Fuse
- Current Rating
- 1250A
- Voltage Rating
- 690V AC (IEC) / 700V AC (UL)
- AC / DC
- AC
- Breaking Capacity
- 200kA RMS Sym.
- I²t
- 965,000 A²s
- Pre-arcing I²t
- 145,000 A²s
- Total I²t
- 965000
- Operating Temperature
- -40°C to +125°C
- Package / Dimensions
- Flush-End Size 4
- Mounting
- Flush-End Contact (B/65: M10, G/65: UNC 1/2"-13)
- Application
- Industrial drives · Large UPS · Power rectifiers
- Standard
- IEC 60269-4 · UL 248-13
- Terminal Type
- Flush-end contact (B/65)
- Fuse Speed
- High-Speed (aR)
- Utilization Class
- aR
- Approvals
- CE · UL Recognized
- Certifications
- UL Recognized|IEC 60269-4|CE
- Reference Lead Time
- 4–6 weeks
- Minimum Order
- 10 pcs
- Sample Status
- Contact for Availability
- Clearing I²t @ 690V
- 965,000 A²s
- Watt Loss @ In
- 195W
- Data Sheet
- 170K6328

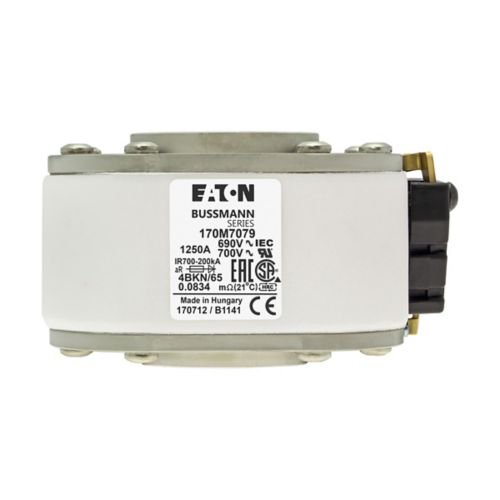

Bussmann 170M7079 1250A 690V AC (IEC) / 700V AC (UL) 170M high-speed square-body fuse
