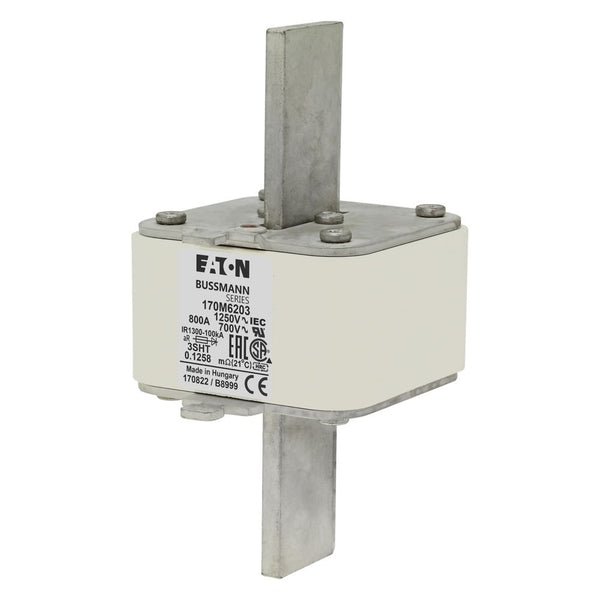

Eaton Bussmann 170M6203 800A 1250V AC aR High-Speed Fuse
● Contact for AvailabilityEaton Bussmann 170M6203 800A 1250V AC aR high-speed fuse for semiconductor and power-electronics protection.
Rated Current800A
Rated Voltage1250V AC
Breaking Capacity100kA
PackageSize 3
QUICK RFQ
Request a quote for 170M6203
Submit directly from this product page. We will reply with availability, lead time and pricing.
Part Number170M6203BrandEaton BussmannRequested Qty100
Eaton Bussmann 170M6203 is a 800A, 1250V AC, aR high-speed square-body fuse in the 170M series for semiconductor, converter, rectifier and drive protection. It is designed for fast current limitation in power-electronics circuits. Refer to the linked Eaton documentation for installation details and coordination data.
Technical Specifications
- Part Number
- 170M6203
- Manufacturer Part Number
- 170M6203
- Series
- 170M
- Current Rating
- 800A
- Voltage Rating
- 1250V AC
- AC / DC
- AC
- Breaking Capacity
- 100kA
- Package / Dimensions
- Size 3
- Mounting
- Special Blade
- Application
- Power Electronics
- Standard
- IEC 60269-4
- Terminal Type
- Special Bladed Contact
- Fuse Speed
- Very Fast Acting
- Utilization Class
- aR
- Approvals
- IEC Rated
- Certifications
- IEC Rated
- Manufacturer
- Eaton Bussmann
- Rated current
- 800A
- Rated voltage
- 1250V AC
- Working class
- aR
- Fuse size
- Size 3
- Terminal/contact
- Special Bladed Contact
