Eaton Bussmann 170M5958 550A 1000V AC aR High-Speed Fuse

Eaton Bussmann

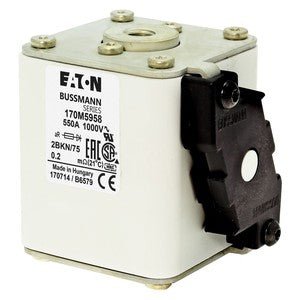

Eaton Bussmann 170M5958 550A 1000V AC aR High-Speed Fuse

Part Number: 170M5958

● Contact for Availability

Eaton Bussmann 170M5958 550A 1000V AC aR high-speed fuse for semiconductor and power-electronics protection.

Rated Current550A

Rated Voltage1000V AC

Breaking Capacity150kA

PackageSize 2

Tags

170M aR Fuse eaton bussmann High-Speed Fuse Semiconductor Fuse Square-Body Fuse

Eaton Bussmann 170M5958 is a 550A, 1000V AC, aR high-speed square-body fuse in the 170M series for semiconductor, converter, rectifier and drive protection. It is designed for fast current limitation in power-electronics circuits. Refer to the linked Eaton documentation for installation details and coordination data.

Technical Specifications

Part Number: 170M5958
Manufacturer Part Number: 170M5958
Series: 170M
Current Rating: 550A
Voltage Rating: 1000V AC
AC / DC: AC
Breaking Capacity: 150kA
I²t: Pre-arcing 66000 A²s; clearing 390000 A²s at 1000V AC
Pre-arcing I²t: 66000
Total I²t: 390000
Package / Dimensions: Size 2
Mounting: Flush
Application: Power Electronics
Standard: IEC 60269-4
Terminal Type: BKN/75 Flush End
Fuse Speed: Very Fast Acting
Utilization Class: aR
Approvals: CE · UL Recognized
Certifications: UL Recognized · CE
Manufacturer: Eaton Bussmann
Rated current: 550A
Rated voltage: 1000V AC
Working class: aR
Fuse size: Size 2
Terminal/contact: BKN/75 Flush End

Downloads

DatasheetOpen / download →
