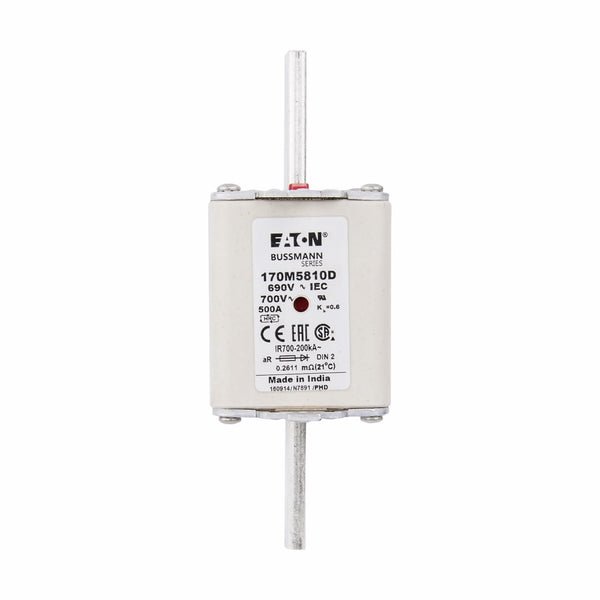

Eaton Bussmann 170M5810D 500A 690V AC aR High-Speed Fuse

Eaton Bussmann

Eaton Bussmann 170M5810D 500A 690V AC aR High-Speed Fuse

Part Number: 170M5810D

● Contact for Availability

Eaton Bussmann 170M5810D 500A 690V AC aR high-speed fuse for semiconductor and power-electronics protection.

Rated Current500A

Rated Voltage690V AC

Breaking Capacity200kA

PackageSize 2

Tags

170M aR Fuse eaton bussmann High-Speed Fuse Semiconductor Fuse Square-Body Fuse

Eaton Bussmann 170M5810D is a 500A, 690V AC, aR high-speed square-body fuse in the 170M series for semiconductor, converter, rectifier and drive protection. It is designed for fast current limitation in power-electronics circuits. Refer to the linked Eaton documentation for installation details and coordination data.

Technical Specifications

Part Number: 170M5810D
Manufacturer Part Number: 170M5810D
Series: 170M
Current Rating: 500A
Voltage Rating: 690V AC
AC / DC: AC
Breaking Capacity: 200kA
Package / Dimensions: Size 2
Mounting: DIN Blade
Application: Power Electronics
Standard: IEC 60269-4
Terminal Type: DIN 43 620 Blade · Dual Indicator
Fuse Speed: Very Fast Acting
Utilization Class: aR
Approvals: CE · UL Recognized
Certifications: UL Recognized · CE
Manufacturer: Eaton Bussmann
Rated current: 500A
Rated voltage: 690V AC
Working class: aR
Fuse size: Size 2
Terminal/contact: DIN 43 620 Blade · Dual Indicator

Downloads

DatasheetOpen / download →
