Eaton Bussmann 170M5698 800A 1100V AC aR High-Speed Fuse

Eaton Bussmann

Eaton Bussmann 170M5698 800A 1100V AC aR High-Speed Fuse

Part Number: 170M5698

● Contact for Availability

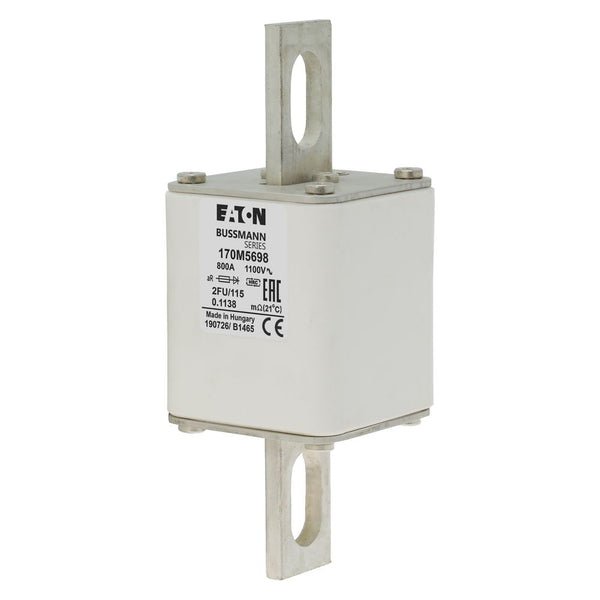

Eaton Bussmann 170M5698 800A 1100V AC aR high-speed fuse for semiconductor and power-electronics protection.

Rated Current800A

Rated Voltage1100V AC

Breaking Capacity100kA

PackageSize 2

Tags

170M aR Fuse eaton bussmann High-Speed Fuse Semiconductor Fuse

Eaton Bussmann 170M5698 is a 800A, 1100V AC, aR high-speed square-body fuse in the 170M series for semiconductor, converter, rectifier and drive protection. It is designed for very fast current limitation in power-electronics circuits. Refer to the linked Eaton documentation for installation details and coordination data.

Technical Specifications

Part Number: 170M5698
Manufacturer Part Number: 170M5698
Series: 170M
Current Rating: 800A
Voltage Rating: 1100V AC
AC / DC: AC
Breaking Capacity: 100kA
I²t: Pre-arcing 245000 A²s; clearing 1200000 A²s at 1000V AC
Pre-arcing I²t: 245000
Total I²t: 1200000
Package / Dimensions: Size 2
Mounting: Bolted Tag
Application: Power Electronics
Standard: IEC 60269-4
Terminal Type: US Style Bolted Tag
Fuse Speed: Very Fast Acting
Utilization Class: aR
Approvals: CE · IEC Rated
Certifications: CE · IEC Rated
Manufacturer: Eaton Bussmann
Rated current: 800A
Rated voltage: 1100V AC
Working class: aR
Fuse size: Size 2

Downloads

DatasheetOpen / download →
