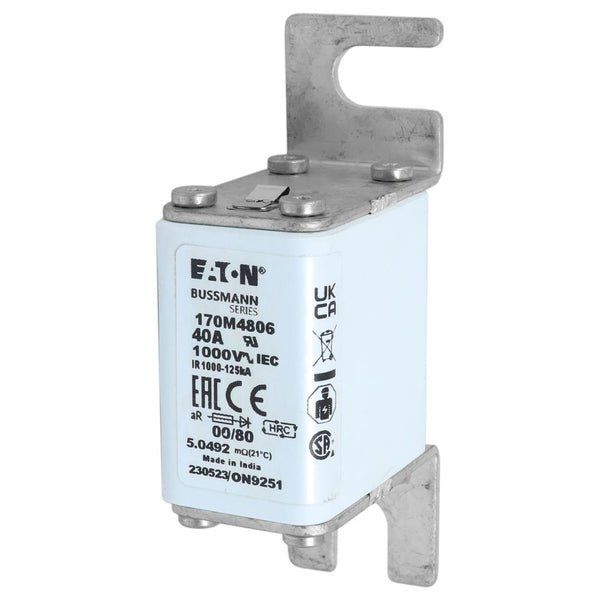

Eaton Bussmann 170M4806 40A 1000V AC aR High-Speed Fuse

Eaton Bussmann

Eaton Bussmann 170M4806 40A 1000V AC aR High-Speed Fuse

Part Number: 170M4806

● Contact for Availability

Eaton Bussmann 170M4806 40A 1000V AC aR high-speed fuse for semiconductor and power-electronics protection.

Rated Current40A

Rated Voltage1000V AC

Breaking Capacity125kA

PackageSize 00

Tags

170M aR Fuse eaton bussmann High-Speed Fuse Semiconductor Fuse

Eaton Bussmann 170M4806 is a 40A, 1000V AC, aR high-speed square-body fuse in the 170M series for semiconductor, converter, rectifier and drive protection. It is designed for very fast current limitation in power-electronics circuits. Refer to the linked Eaton documentation for installation details and coordination data.

Technical Specifications

Part Number: 170M4806
Manufacturer Part Number: 170M4806
Series: 170M
Current Rating: 40A
Voltage Rating: 1000V AC
AC / DC: AC
Breaking Capacity: 125kA
I²t: Pre-arcing 100 A²s; clearing 690 A²s at 1000V AC
Pre-arcing I²t: 100
Total I²t: 690
Package / Dimensions: Size 00
Mounting: DIN 43653
Application: Power Electronics
Standard: IEC 60269-4
Terminal Type: DIN 43653 Bolted Tag
Fuse Speed: Very Fast Acting
Utilization Class: aR
Approvals: CE · UL Recognized
Certifications: UL Recognized · CE
Manufacturer: Eaton Bussmann
Rated current: 40A
Rated voltage: 1000V AC
Working class: aR
Fuse size: Size 00
