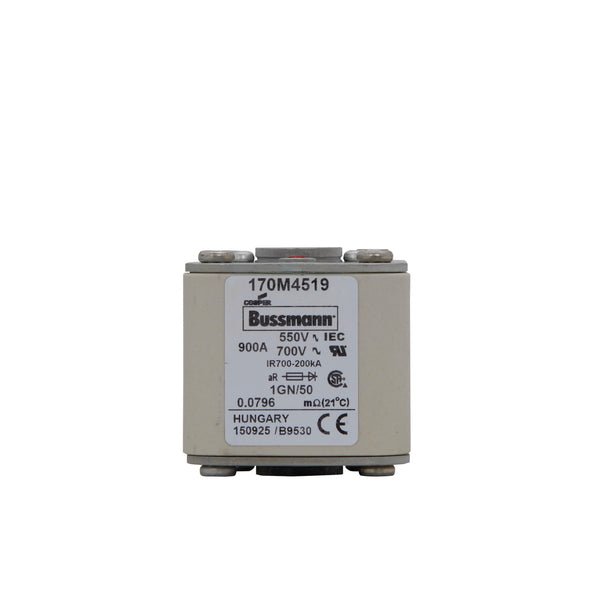

Eaton Bussmann 170M4519 900A 550V AC aR High-Speed Fuse
● Contact for AvailabilityEaton Bussmann 170M4519 900A 550V AC aR high-speed square-body fuse for semiconductor and power-electronics protection.
Rated Current900A
Rated Voltage550V AC
Breaking Capacity200kA
PackageSize 1
QUICK RFQ
Request a quote for 170M4519
Submit directly from this product page. We will reply with availability, lead time and pricing.
Part Number170M4519BrandEaton BussmannRequested Qty100
Eaton Bussmann 170M4519 is a 900A, 550V AC, aR high-speed square-body fuse for semiconductor and power-electronics protection. The Size 1 construction uses Flush End Contact termination with G visual indicator. Interrupt rating is 200kA. Pre-arcing I²t is 155000 A²s and clearing I²t is 850000 A²s at 550V AC. Suitable for converters, rectifiers, drives and related power-electronics protection; verify final coordination against Eaton’s official time-current data.
Technical Specifications
- Part Number
- 170M4519
- Manufacturer Part Number
- 170M4519
- Series
- 170M
- Current Rating
- 900A
- Voltage Rating
- 550V AC
- AC / DC
- AC
- Breaking Capacity
- 200kA
- I²t
- Pre-arcing 155000 A²s; clearing 850000 A²s at 550V AC
- Pre-arcing I²t
- 155000 A²s
- Total I²t
- 850000
- Package / Dimensions
- Size 1
- Mounting
- Flush
- Application
- Power Electronics
- Standard
- IEC 60269-4
- Terminal Type
- Flush End Contact
- Fuse Speed
- Very Fast Acting
- Utilization Class
- aR
- Approvals
- CE · IEC Rated
- Certifications
- CE · IEC Rated
- Manufacturer
- Eaton Bussmann
- Rated current
- 900A
- Rated voltage
- 550V AC
- Utilization class
- aR
- Fuse size
- Size 1
- Breaking capacity
- 200kA
- Terminal / connection
- Flush End Contact
- Variant
- G visual indicator
- Clearing I²t
- 850000 A²s (550V AC)
