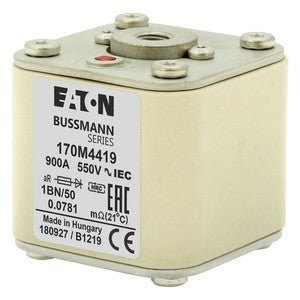

Eaton Bussmann 170M4419 900A 550V AC aR High-Speed Fuse

Eaton Bussmann

Eaton Bussmann 170M4419 900A 550V AC aR High-Speed Fuse

Part Number: 170M4419

● Contact for Availability

Eaton Bussmann 170M4419 900A 550V AC aR high-speed square-body fuse for semiconductor and power-electronics protection.

Rated Current900A

Rated Voltage550V AC

Breaking Capacity200kA

PackageSize 1

Tags

170M aR Fuse eaton bussmann High-Speed Fuse Semiconductor Fuse Square-Body Fuse

Eaton Bussmann 170M4419 is a 900A, 550V AC, aR high-speed square-body fuse for semiconductor and power-electronics protection. The Size 1 construction uses Flush End Contact termination with Flush End visual indicator. Interrupt rating is 200kA. Pre-arcing I²t is 155000 A²s and clearing I²t is 850000 A²s at 550V AC. Suitable for converters, rectifiers, drives and related power-electronics protection; verify final coordination against Eaton’s official time-current data.

Technical Specifications

Part Number: 170M4419
Manufacturer Part Number: 170M4419
Series: 170M
Current Rating: 900A
Voltage Rating: 550V AC
AC / DC: AC
Breaking Capacity: 200kA
I²t: Pre-arcing 155000 A²s; clearing 850000 A²s at 550V AC
Pre-arcing I²t: 155000 A²s
Total I²t: 850000
Package / Dimensions: Size 1
Mounting: Flush
Application: Power Electronics
Standard: IEC 60269-4
Terminal Type: Flush End Contact
Fuse Speed: Very Fast Acting
Utilization Class: aR
Approvals: CE · IEC Rated
Certifications: CE · IEC Rated
Manufacturer: Eaton Bussmann
Rated current: 900A
Rated voltage: 550V AC
Utilization class: aR
Fuse size: Size 1
Breaking capacity: 200kA
Terminal / connection: Flush End Contact
Variant: Flush End visual indicator
Clearing I²t: 850000 A²s (550V AC)

Downloads

DatasheetOpen / download →
