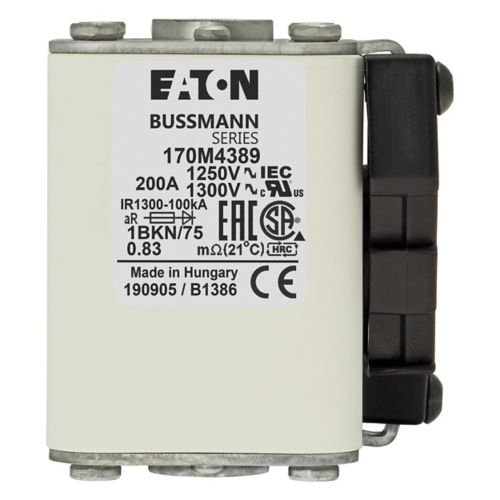

Eaton Bussmann 170M4389 200A 1250V AC aR High-Speed Fuse

Eaton Bussmann

Eaton Bussmann 170M4389 200A 1250V AC aR High-Speed Fuse

Part Number: 170M4389

● Contact for Availability

Eaton Bussmann 170M4389 200A 1250V AC aR high-speed square-body fuse for semiconductor and power-electronics protection.

Rated Current200A

Rated Voltage1250V AC

Breaking Capacity100kA

PackageSize 1

Tags

170M aR Fuse eaton bussmann High-Speed Fuse Semiconductor Fuse Square-Body Fuse

Eaton Bussmann 170M4389 is a 200A, 1250V AC, aR high-speed square-body fuse for semiconductor and power-electronics protection. The Size 1 construction uses Flush End Contact termination with Standard high-voltage flush-end configuration. Interrupt rating is 100kA. Pre-arcing I²t is 3800 A²s and clearing I²t is 30000 A²s at 1250V AC. Suitable for converters, rectifiers, drives and related power-electronics protection; verify final coordination against Eaton’s official time-current data.

Technical Specifications

Part Number: 170M4389
Manufacturer Part Number: 170M4389
Series: 170M
Current Rating: 200A
Voltage Rating: 1250V AC
AC / DC: AC
Breaking Capacity: 100kA
I²t: Pre-arcing 3800 A²s; clearing 30000 A²s at 1250V AC
Pre-arcing I²t: 3800 A²s
Total I²t: 30000
Package / Dimensions: Size 1
Mounting: Flush
Application: Power Electronics
Standard: IEC 60269-4
Terminal Type: Flush End Contact
Fuse Speed: Very Fast Acting
Utilization Class: aR
Approvals: CE · IEC Rated
Certifications: CE · IEC Rated
Manufacturer: Eaton Bussmann
Rated current: 200A
Rated voltage: 1250V AC
Utilization class: aR
Fuse size: Size 1
Breaking capacity: 100kA
Terminal / connection: Flush End Contact
Variant: Standard high-voltage flush-end configuration
Clearing I²t: 30000 A²s (1250V AC)

Downloads

DatasheetOpen / download →
