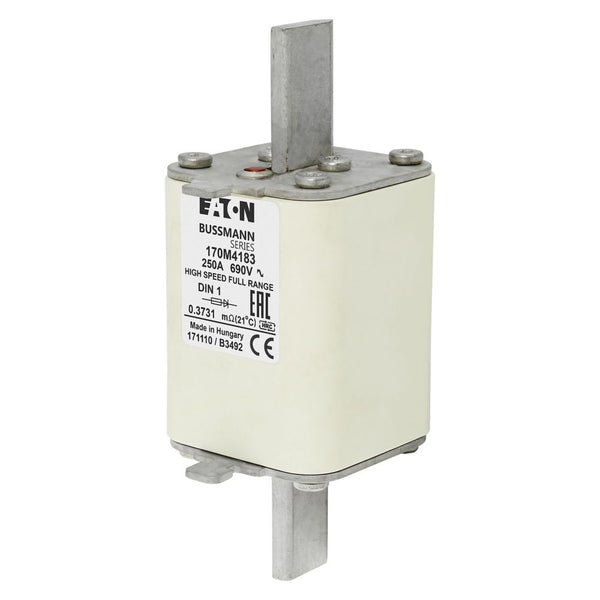

Eaton Bussmann 170M4183 250A 690V AC gR High-Speed Fuse
● Contact for AvailabilityEaton Bussmann 170M4183 250A 690V AC gR high-speed square-body fuse for semiconductor and power-electronics protection.
Rated Current250A
Rated Voltage690V AC
Breaking Capacity200kA
PackageSize 1
QUICK RFQ
Request a quote for 170M4183
Submit directly from this product page. We will reply with availability, lead time and pricing.
Part Number170M4183BrandEaton BussmannRequested Qty100
Eaton Bussmann 170M4183 is a 250A, 690V AC, gR high-speed square-body fuse for semiconductor and power-electronics protection. The Size 1 construction uses DIN 43 620 Blade termination with Type T indicator for microswitch. Interrupt rating is 200kA. Pre-arcing I²t is 13500 A²s and clearing I²t is 70500 A²s at 600V AC. Suitable for converters, rectifiers, drives and related power-electronics protection; verify final coordination against Eaton’s official time-current data.
Technical Specifications
- Part Number
- 170M4183
- Manufacturer Part Number
- 170M4183
- Series
- 170M
- Current Rating
- 250A
- Voltage Rating
- 690V AC
- AC / DC
- AC
- Breaking Capacity
- 200kA
- I²t
- Pre-arcing 13500 A²s; clearing 70500 A²s at 600V AC
- Pre-arcing I²t
- 13500 A²s
- Total I²t
- 70500
- Package / Dimensions
- Size 1
- Mounting
- DIN Blade
- Application
- Power Electronics
- Standard
- IEC 60269-4
- Terminal Type
- DIN 43 620 Blade
- Fuse Speed
- Very Fast Acting
- Utilization Class
- gR
- Approvals
- CE · UL Recognized
- Certifications
- UL Recognized · CE
- Manufacturer
- Eaton Bussmann
- Rated current
- 250A
- Rated voltage
- 690V AC
- Utilization class
- gR
- Fuse size
- Size 1
- Breaking capacity
- 200kA
- Terminal / connection
- DIN 43 620 Blade
- Variant
- Type T indicator for microswitch
- Clearing I²t
- 70500 A²s (600V AC)
