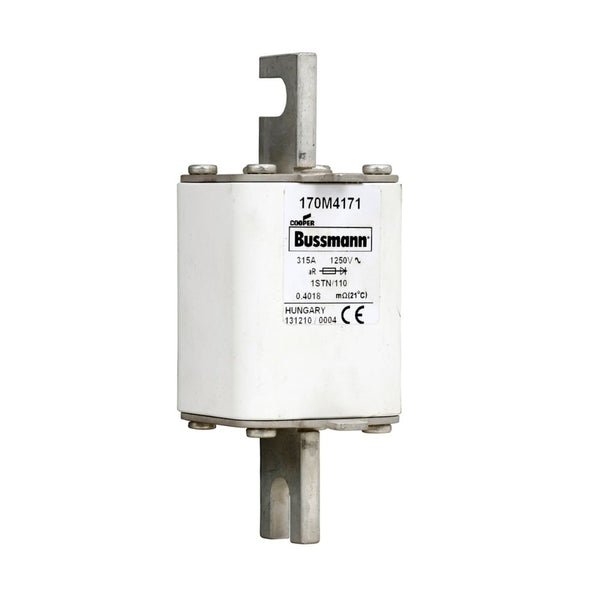

Eaton Bussmann 170M4171 315A 1250V AC aR High-Speed Fuse
Eaton Bussmann

Eaton Bussmann 170M4171 315A 1250V AC aR High-Speed Fuse

Part Number: 170M4171

● Contact for Availability

Eaton Bussmann 170M4171 315A 1250V AC aR high-speed square-body fuse for semiconductor and power-electronics protection.

Rated Current315A
Rated Voltage1250V AC
Breaking Capacity100kA
PackageSize 1
Tags
Share

Eaton Bussmann 170M4171 is a 315A, 1250V AC, aR high-speed square-body fuse for semiconductor and power-electronics protection. The Size 1 construction uses Slotted center bolted tags termination with Single indicator. Interrupt rating is 100kA. Suitable for converters, rectifiers, drives and related power-electronics protection; verify final coordination against Eaton’s official time-current data.

Technical Specifications

Part Number
170M4171
Manufacturer Part Number
170M4171
Series
170M
Current Rating
315A
Voltage Rating
1250V AC
AC / DC
AC
Breaking Capacity
100kA
Package / Dimensions
Size 1
Mounting
Bolted Tag
Application
Power Electronics
Standard
IEC 60269-4
Terminal Type
Slotted center bolted tags
Fuse Speed
Very Fast Acting
Utilization Class
aR
Approvals
CE · IEC Rated
Certifications
CE · IEC Rated
Manufacturer
Eaton Bussmann
Rated current
315A
Rated voltage
1250V AC
Utilization class
aR
Fuse size
Size 1
Breaking capacity
100kA
Terminal / connection
Slotted center bolted tags
Variant
Single indicator

Downloads

DatasheetOpen / download →
