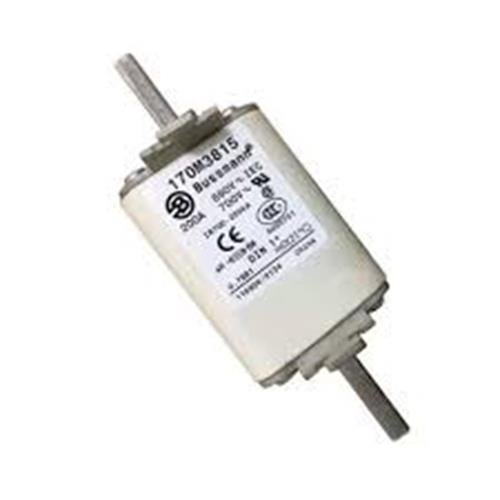

Eaton Bussmann 170M3815 200A 690V AC aR High-Speed Fuse
● Contact for AvailabilityEaton Bussmann 170M3815 200A 690V AC aR high-speed square-body fuse for semiconductor and power-electronics protection.
Rated Current200A
Rated Voltage690V AC
Breaking Capacity200kA
PackageSize 1*
QUICK RFQ
Request a quote for 170M3815
Submit directly from this product page. We will reply with availability, lead time and pricing.
Part Number170M3815BrandEaton BussmannRequested Qty100
Eaton Bussmann 170M3815 is a 200A, 690V AC, aR high-speed square-body fuse for semiconductor and power-electronics protection. The Size 1* construction uses DIN 43 620 Blade termination with Type T indicator for microswitch. Interrupt rating is 200kA. Pre-arcing I²t is 2200 A²s and clearing I²t is 15000 A²s at 660V AC. Suitable for converters, rectifiers, drives and related power-electronics protection; verify final coordination against Eaton’s official time-current data.
Technical Specifications
- Part Number
- 170M3815
- Manufacturer Part Number
- 170M3815
- Series
- 170M
- Current Rating
- 200A
- Voltage Rating
- 690V AC
- AC / DC
- AC
- Breaking Capacity
- 200kA
- I²t
- Pre-arcing 2200 A²s; clearing 15000 A²s at 660V AC
- Pre-arcing I²t
- 2200 A²s
- Total I²t
- 15000
- Package / Dimensions
- Size 1*
- Mounting
- DIN Blade
- Application
- Power Electronics
- Standard
- IEC 60269-4
- Terminal Type
- DIN 43 620 Blade
- Fuse Speed
- Very Fast Acting
- Utilization Class
- aR
- Approvals
- CE · UL Recognized
- Certifications
- UL Recognized · CE
- Manufacturer
- Eaton Bussmann
- Rated current
- 200A
- Rated voltage
- 690V AC
- Utilization class
- aR
- Fuse size
- Size 1*
- Breaking capacity
- 200kA
- Terminal / connection
- DIN 43 620 Blade
- Variant
- Type T indicator for microswitch
- Clearing I²t
- 15000 A²s (660V AC)
